Model 1450 Single Acting

Products

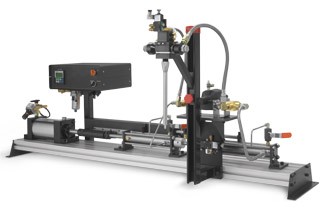

1450 Single Acting Dispensing System

Designed for production and precision dispensing of "two part" reactive resin formulations.

Specifications

Bore (Major Component): 1.500" diameter
Stroke: 5"
Full Stroke Volume (1:1 ratio): 8 fl. oz/239 cc
OAL (Baseplate): 55-1/2"



Features

  • Custom bore sizes to provide ratios for your production requirements.
  • Positive displacement piston metering for consistent, accurate delivery of A and B materials. Ratio is assured by honed cylinder diameters.
  • Linked Diverter Valve (LDV) material valves eliminate problems caused by check valves.
  • Low cycle rate for improved wear.
  • Stainless steel, PTFE, and hard coated nickel components ensure long lasting performance, even with abrasive materials.
  • Numerous incremental shots throughout the stroke rather than "one shot, one stroke".
  • Manual ("eyeball") or encoder controlled dispensing.
  • Mixer manifold isolates materials until they enter the disposable mixer.
  • Inexpensive disposable mixing. No solvents.
  • Material can be pressure fed from tanks or pump fed from 2 - 55 gallon drums, or other bulk containers.



VideosOptionsCompleted Systems

Encoder: For critical applications requiring precise shot size. Accuracy to .0008" of cylinder stroke. (.0004" optional)

Pumps: Wide range available for use with 2 gallon to 55 gallon containers. Air assisted ram for heavy or viscous liquids.

Heated hoses: Up to 20 feet.

Tanks:

  • Vacuum degassing
  • 1 Quart to 30 gallons
  • Heated blankets to 150°F
  • Agitation-pneumatic or electric
  • Nitrogen blanket for moisture sensitive materials
  • Level controls

Systems Integration: Interfacing of EXACT dispensing equipment with your process.

Solution integration: EXACT can provide the dispensing equipment as well as EIC (Enhanced Integrated Control) for motion and/or vacuum process.

Portable skids/carts: Engineered to your application, offers mobility for remote task requirements.
